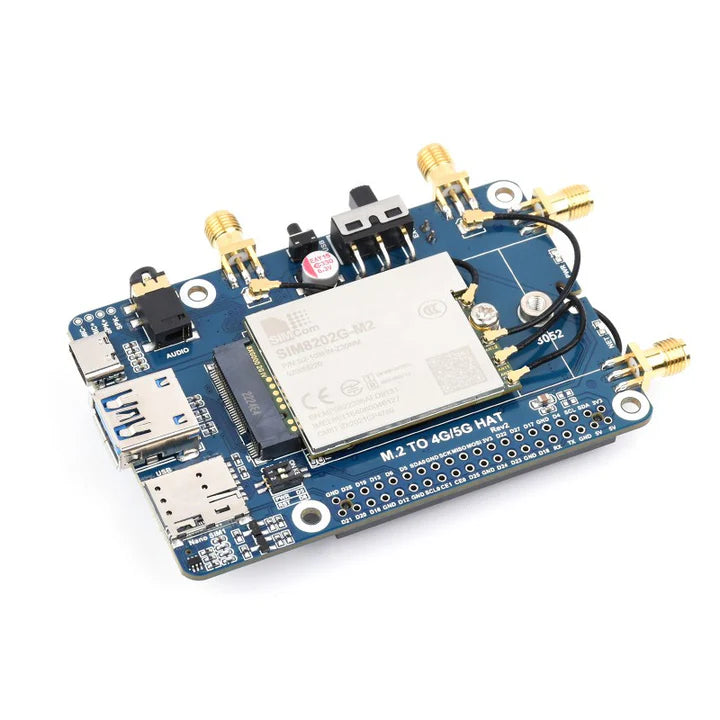

SIM8262E-M2/SIM8202G-M2 5G HAT
For Raspberry Pi

Supports 5G NSA And SA Networking, GNSS Positioning

Features

• Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
• Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
• Operating system support: Windows/Linux/Android
• USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
• Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, setting via DIP switches
• Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
• Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
• Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
• 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
• 2x SIM card slot, dual card single standby, switchable via AT command
• Onboard audio jack and audio decoder, allows audio operation like making phone call
• High efficiency power supply circuit, up to 3A output current

Wiki: www.waveshare.com/wiki/SIM8202G-M2_5G_HAT_(B)
Wiki: www.waveshare.com/wiki/SIM8262E-M2_5G_HAT

Documentation to make it work with Jio 5G SIM (India) .

Version Options

Without Case	With Case

Specifications

	SIM8200EA-M2	SIM8202G-M2	SIM8262E-M2	SIM8262A-M2
5G STANDARD	3GPP R15		3GPP R16
CHIP	Qualcomm Snapdragon X55		Qualcomm Snapdragon X62
FREQUENCY BAND
Sub-6G	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71		B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48		B38, B39, B40, B41, B42, B43	B41, B46, B48
WCDMA	B1, B2, B3, B4, B5, B8		B1, B5, B8	B2, B4, B5
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
DATA RATE
Sub-6G	2.4 Gbps (DL)  /  500 Mbps (UL)
LTE	1 Gbps (DL)  /  200 Mbps (UL)
HSPA+	42 Mbps (DL)  /  5.76 Mbps (UL)
SOFTWARE FUNCTIONS
Operating systems	Windows/Linux/Android
Communication protocols	TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
Dial Up	RNDIS、NDIS、PPP、MBIM
SMS	Supports MT, MO, CB, Text, PDU
Firmware upgrade	Supports firmware upgrade via USB port
HARDWARE SPECIFICATIONS
SIM Card	1.8V/2.95V
Antenna	For 3G/4G/5G/GNSS
	6 × IPEX-4 connectors	4 × IPEX-4 connectors
Power Supply	3.135~4.4V
Form Factor	M.2
Dimensions	52.0 × 30.0 × 2.3 mm	42.0 × 30.0 × 2.3 mm
Operating Temperature	-30℃ ~ +70℃
APPLICATIONS
Applicable regions	China, US, Japan, South Korea, Europe, the Middle East, Latin America		except Americas	Americas
	The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands
Application examples	CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security

Multi Mode Multi Band

Applicable For Most Of The Countries And Regions

Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.



Multi System Support, Easy To Use

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

Connection Examples

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

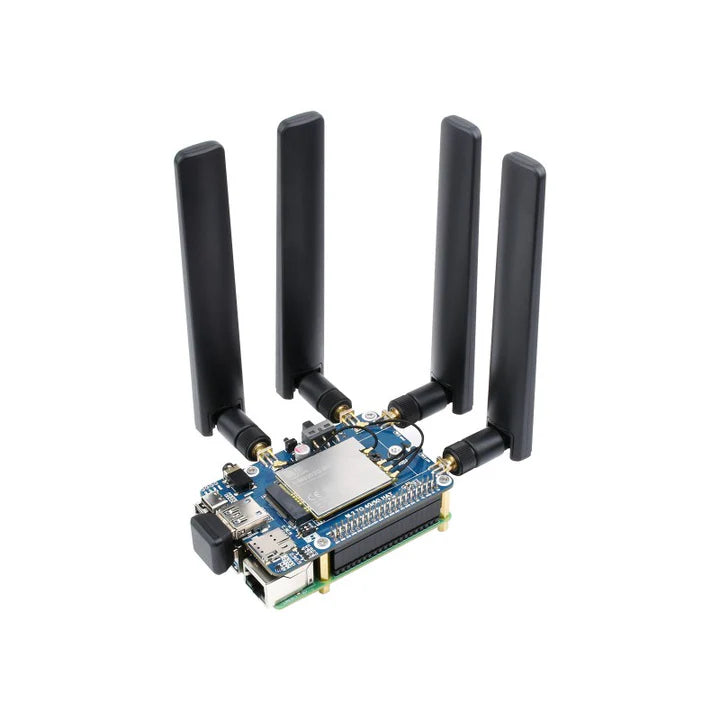

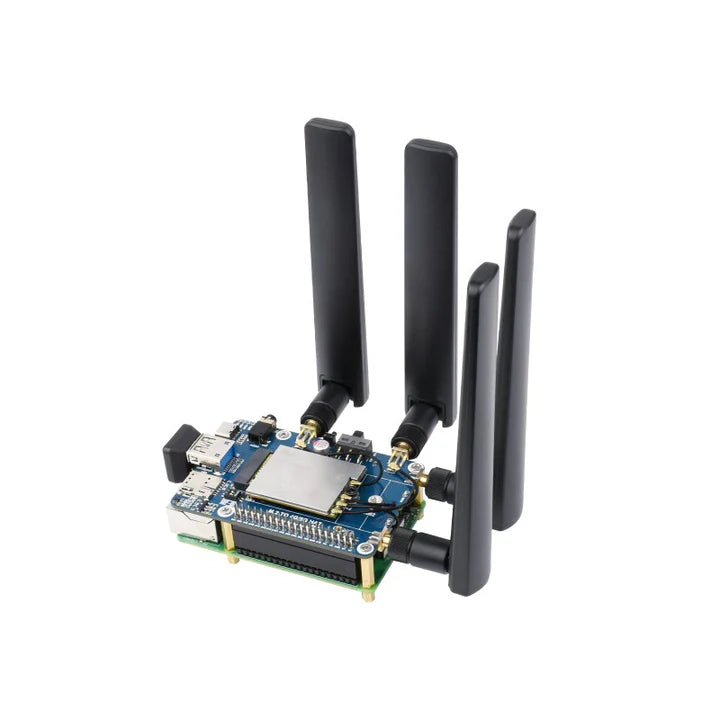

connecting with Raspberry Pi 4B

connecting with Raspberry Pi 3B+

connecting with CM4 IO Base

Cloud Communication

Multi-Constellation High-Precision GNSS

Supports GPS, Beidou, Glonass, Galileo, QZSS

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs

* for reference only, please check the Package Content section for exact part list.

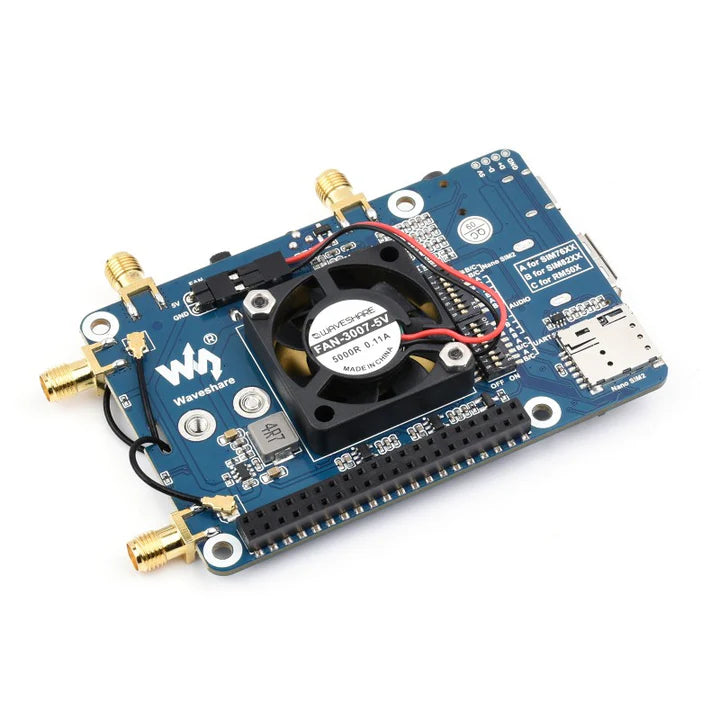

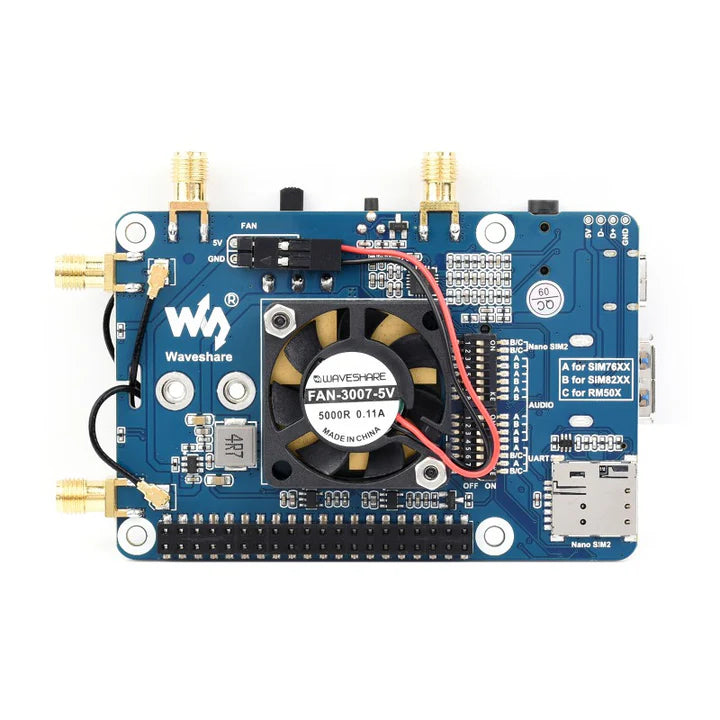

High Speed Cooling Fan

Better Heat Dissipation For Both Raspberry Pi And The 5G Module

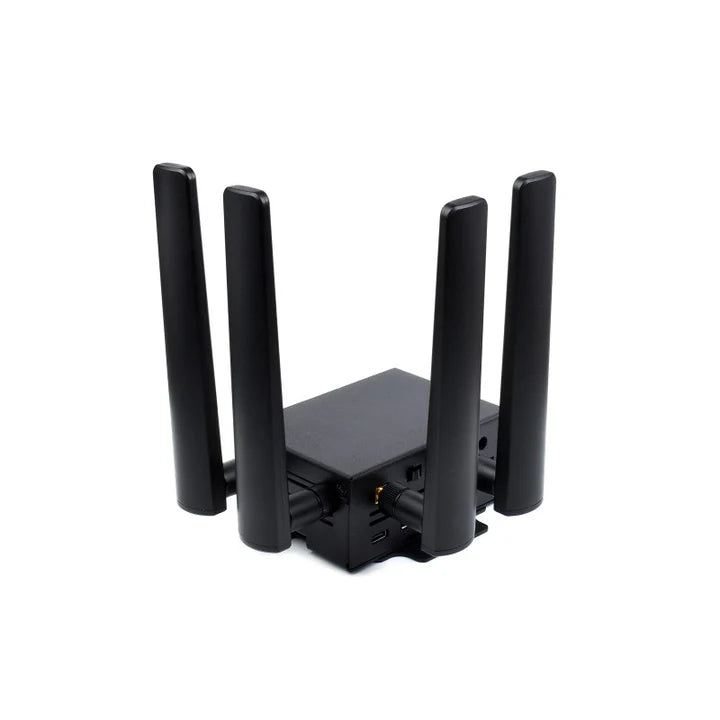

Optional Case

Multi Installation Methods, Convenient For Various Application Scenarios Such As Industry

Outline Dimensions
