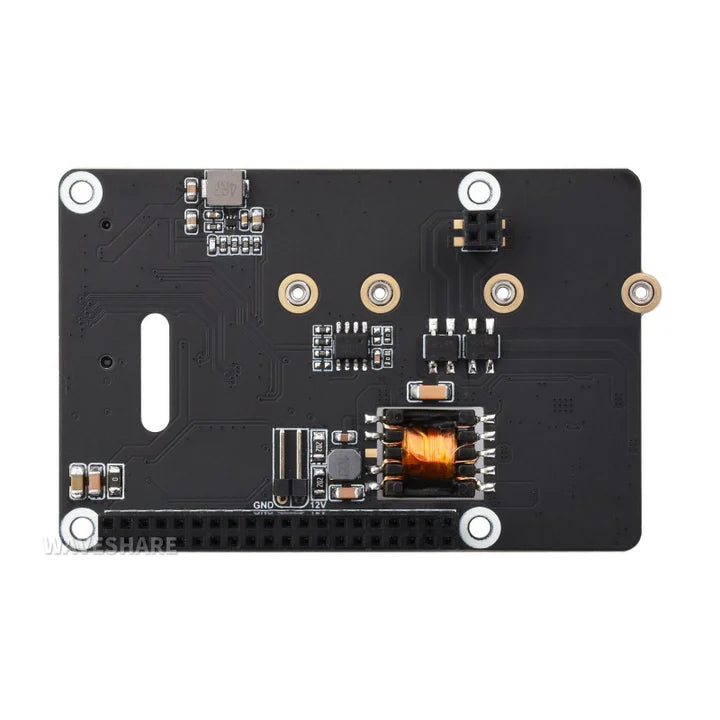

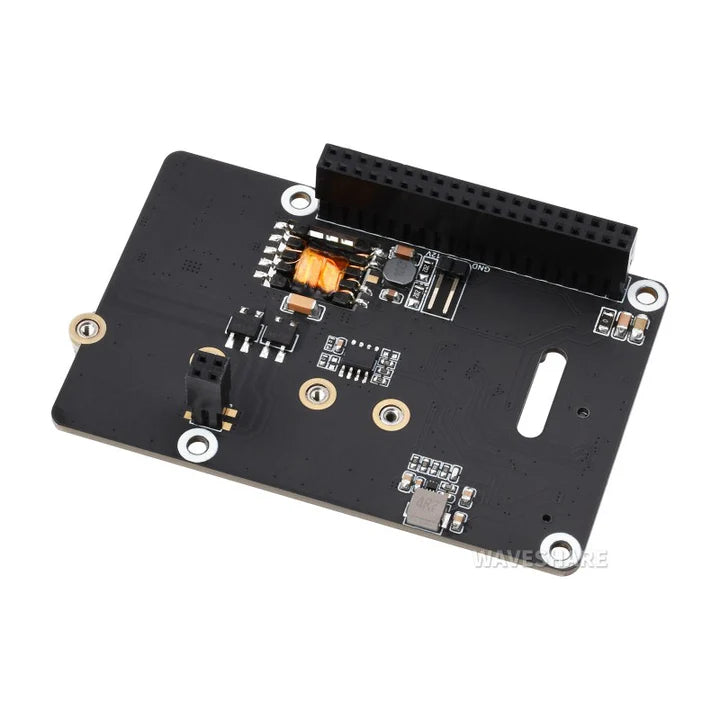

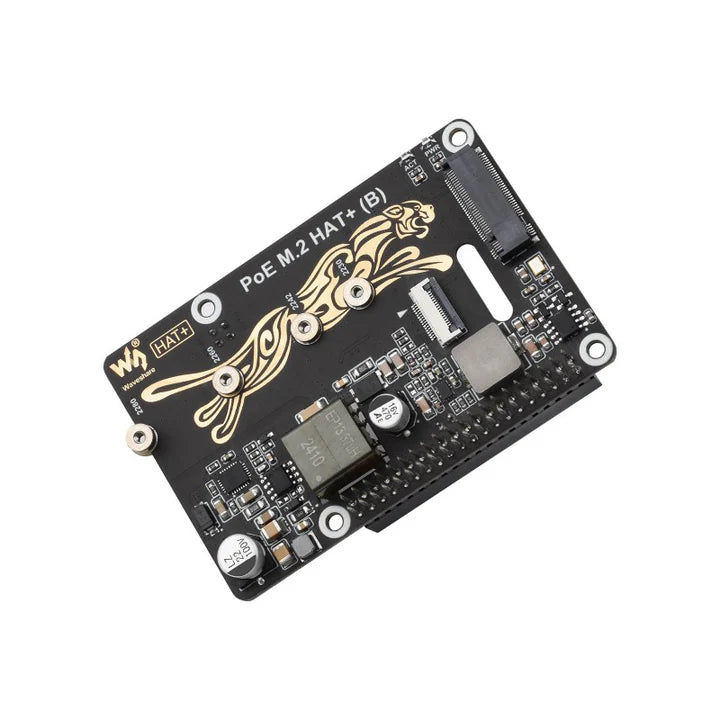

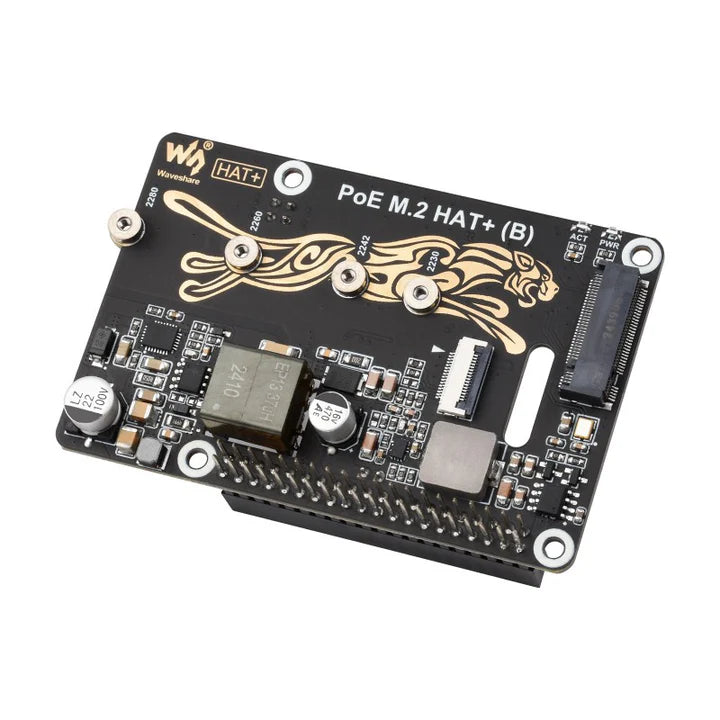

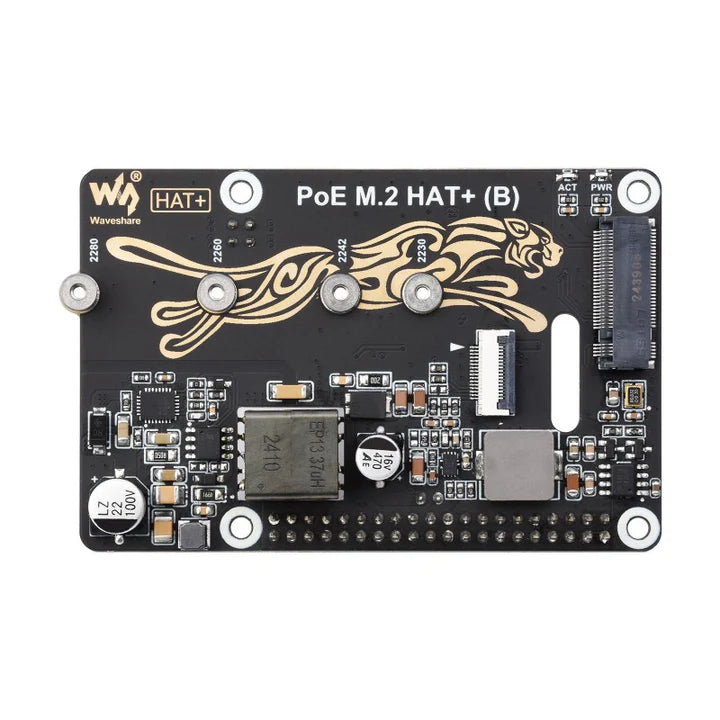

PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT

Specifications

PoE power input 37V ~ 57V DC in
Power output GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)
Dimensions 56.0 × 85.0 (mm)
Network standard IEEE 802.3af/at PoE




Improves reading/writing speed of your Pi

PCIe To M.2 with PoE HAT (B), improves reading/writing speed

* for reference only, the Raspberry Pi 5 and Solid State Drive are not included.



NVMe Drive Slot Support


PCIe To M.2 with PoE HAT (B), NVMe Drive slot support

Note: Only supports the NVMe Protocol Solid State Drives.



Adopts Immersion Gold Process

Better appearance | Anti-oxidation | Anti-corrosion | Strong welding

PCIe To M.2 with PoE HAT (B), adopts anti-Oxidation Immersion Gold Process



Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header,
allows connecting other HATs

PCIe To M.2 with PoE HAT (B), connecting to PI5 via 16PIN cable

* for reference only, please refer to the Package Content for detailed part list



Onboard Dual LED Indicators

Easy to monitor the Working Status

PCIe To M.2 with PoE HAT (B), onboard dual LED indicators



NVMe Drive Protocol Support

Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

PCIe To M.2 with PoE HAT (B), compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive



Power Over Ethernet

providing both network connection and
power supply for your Raspberry Pi in one cable

PCIe To M.2 with PoE HAT (B), with PoE function
* for reference only, the Raspberry Pi 5, Network cable, and switch are NOT included.



Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi

PCIe To M.2 with PoE HAT (B), onboard 5V & 12V header outputs



How to Install

Attach the thermal tapes first, then install the cooling fan and fix the HAT

PCIe To M.2 with PoE HAT (B), how to install

* for reference only, please refer to the Package Content for detailed part list



PCIe To M.2 with PoE HAT (B), Hat+ standard



Outline dimensions

PCIe To M.2 with PoE HAT (B), outline dimensions



Resources

Wiki: www.waveshare.com/wiki/PoE_M.2_HAT+_(B)



Package Contents:

Weight: 0.023 kg

  1. PoE M.2 HAT+ (B) x1
  2. 16PIN PCIe cable x1
  3. SSD mounting screw x1
  4. Screws pack x1

PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
